36V DC Fire Exit Door Release Button 3A ABS with Dull Polish Finish
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | JUNSON |
| Сертификация: | CE |
| Номер модели: | JS-GR01 |
Оплата и доставка Условия:
| Количество мин заказа: | 50 шт |
|---|---|
| Цена: | Договоренно |
| Упаковывая детали: | упаковано в коробку |
| Время доставки: | 2-7 рабочих дней после получения оплаты |
| Условия оплаты: | T/T, PayPal или Western Union заранее |
| Поставка способности: | 20,000pcs в месяц |
|
Подробная информация |
|||
| Бренд: | Junson | Модель: | JS-GR01 |
|---|---|---|---|
| Материалы: | Снабжение жилищем ABS | контакты: | Co/nc/com |
| Размер: | 86*86*50 мм | Доступный: | Система безопасности |
| Название продукта: | Дверная релиз | Напряжение: | Макс 36 В. |
Характер продукции

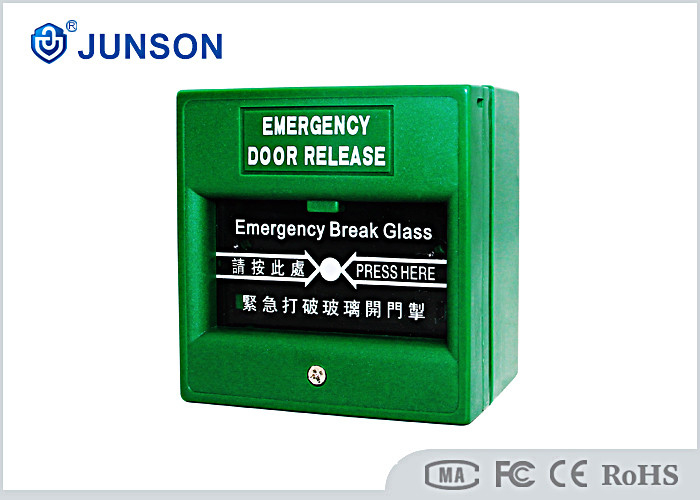

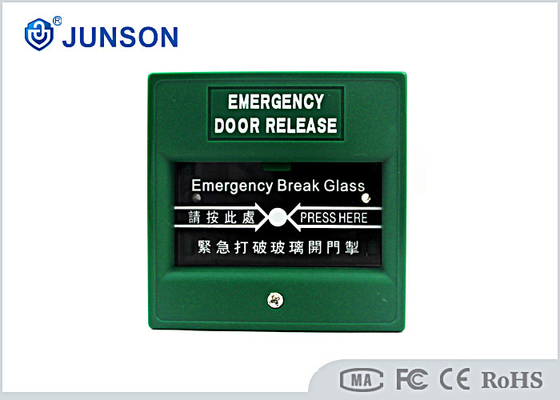

JS-GR01 fire exit door release button operates on 36V DC, 3A load. Made of durable ABS with dull polish finish, it ensures reliable performance and quick emergency access for secure exit solutions.
Parameter List
| Size | 86 * 86 * 50mm |
| Materials | ABS housing |
|
Thickness of materials
|
3mm |
| Voltage: Max | 36 V DC |
| Maximum current | 3A |
| Dry contact | No,NC,COM |
| Finishing |
Sandblast finishing
|
| Optional accessories | Transparency cover |
| Facing finishing | Fireproofing materials, dull polish |
| Color | Green, Yellow, Red, White |
|
Mechanical life
|
500000 times
|
| Operation temperature | -10-55℃ |
| Operation Humidity | 0-95℃ |
| Available |
All kind of Emergency exit
|
Features
-
Emergency Release: Designed for quick and safe door unlocking in emergencies.
-
Fire-Retardant Material: Built with high-quality, flame-resistant materials for added safety.
-
Color Options: Available in red, green, white, and yellow.
-
Output Configuration: Single output with NO/NC/COM terminals.
-
Electrical Rating: Supports up to 3A @ 36VDC max.
-
Wide Application: Suitable for escape doors, emergency exits, and safety access points.
