Mechanical Fail-Safe Door Strike for Glass Doors 800kg Holding Force
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | JUNSON |
| Сертификация: | CE/ROHS/FCC |
| Номер модели: | JS-135f |
Оплата и доставка Условия:
| Количество мин заказа: | 10 шт |
|---|---|
| Цена: | Договоренно |
| Упаковывая детали: | упаковано в коробку |
| Время доставки: | 2-7 рабочих дней после получения оплаты |
| Условия оплаты: | T/T, PayPal или Western Union заранее |
| Поставка способности: | 30 000 процентов в месяц |
|
Подробная информация |
|||
| Модель: | JS-135f | Название продукта: | электрическая забастовка |
|---|---|---|---|
| Особенность: | Провалиться безопасно | NC-Нет типа: | Регулируемый |
| Источник питания: | 12 В | Сигнал вне: | N/a |
| Структура забастовки: | Заливка формы цинка | Удержание силы: | 800 кг |
Характер продукции

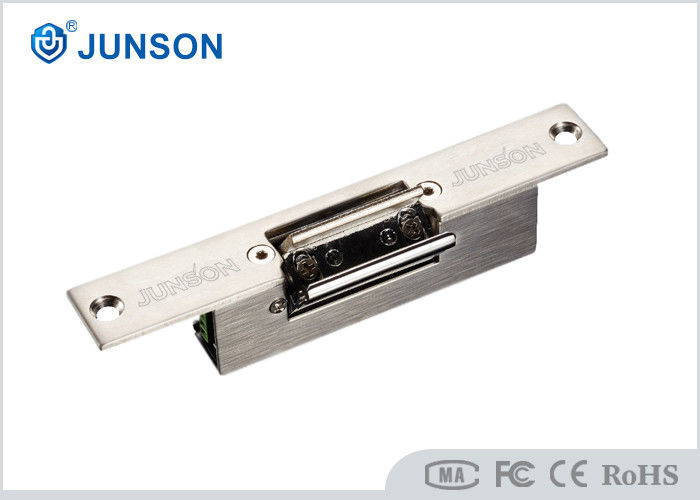

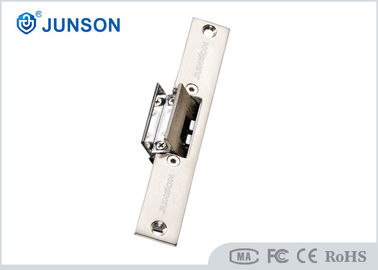

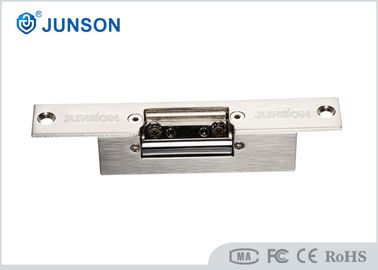

Mechanical Fail-Safe Door Strike for Glass Door with 800kg Holding Force
JS-135F lock is designed for narrow frame doors, featuring an adjustable spring bolt for continuous open mode. A versatile, durable solution from our full product range.
Parameters:
|
Lock Dimension |
160Lx25Wx31H(mm) |
| Weight | 0.4kg |
|
Standard Packing |
60pcs |
| Cartons size | 54L * 20W * 30.5H (cm) |
|
Holding Strength |
800kg |
|
Style |
Fail Safe |
|
Voltage |
12V DC |
|
Current |
200mA |
|
Available lock |
Rim lock, mechanical lock |
|
Suitable for |
Narrow wooden door, narrow metal door |
|
Special design |
Adjust lock tongue to NO type |
|
Surface Temp |
Within + 20℃ |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
Coating nickel |
|
Strike Structure |
Stainless Steel |
Features:
-
High Holding Force: Supports up to 800kg.
-
Durable Materials: Constructed with aluminum housing and stainless steel bolt.
-
Reliable Performance: Tested to over 1,000,000 cycles for long-term use.
-
Certified Quality: CE certified by the European Union and MA certified by China Public Security Office.
